BAMBOO | Organic Asymmetric Bollard

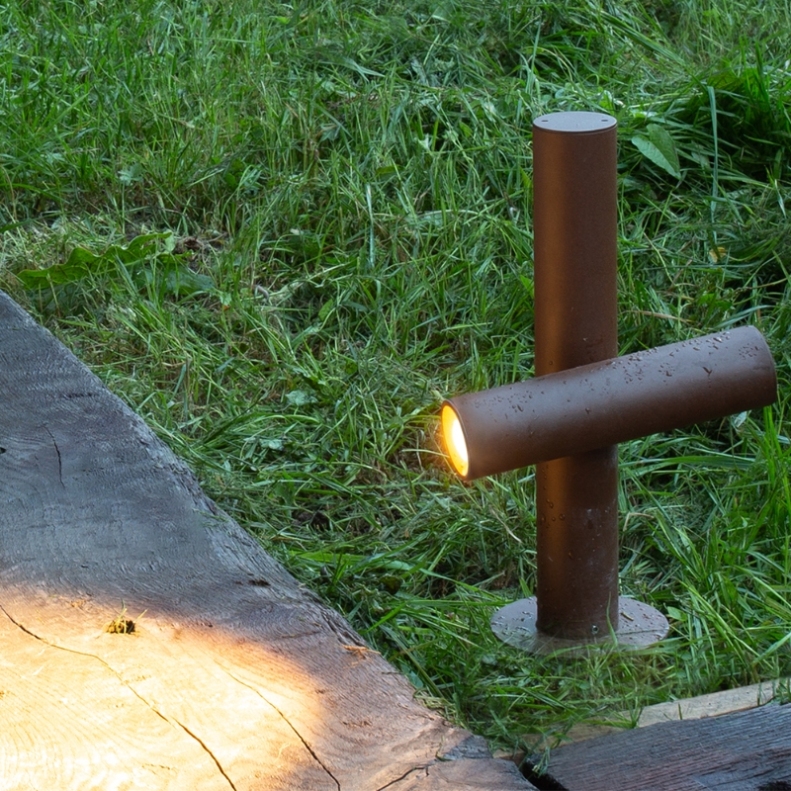

Nature-inspired bollard family resembling cut bamboo stems, blending seamlessly into garden vegetation. The TUBE platform pairs a 6063-T6 CNC-machined aluminium body with acrylic optics and a 350-degree rotatable head: LT-X1-7W single-head at 578 lm and LT-X2-14W dual-head at 1156 lm - both 85 lm/W with 15 / 24 / 36 / 50 degree beam options and 5000K standard (3000K / 4000K on request). Heights 270 / 600 / 900 mm, IP65 and IK06 rated, MacAdam step 3, in textured grey, anthracite, bronze or custom finishes.
Specifications
- Series
- BAMBOO - organic asymmetric bollard (TUBE platform)
- Models
- LT-X1-7W (single head) / LT-X2-14W (dual head)
- Sizes

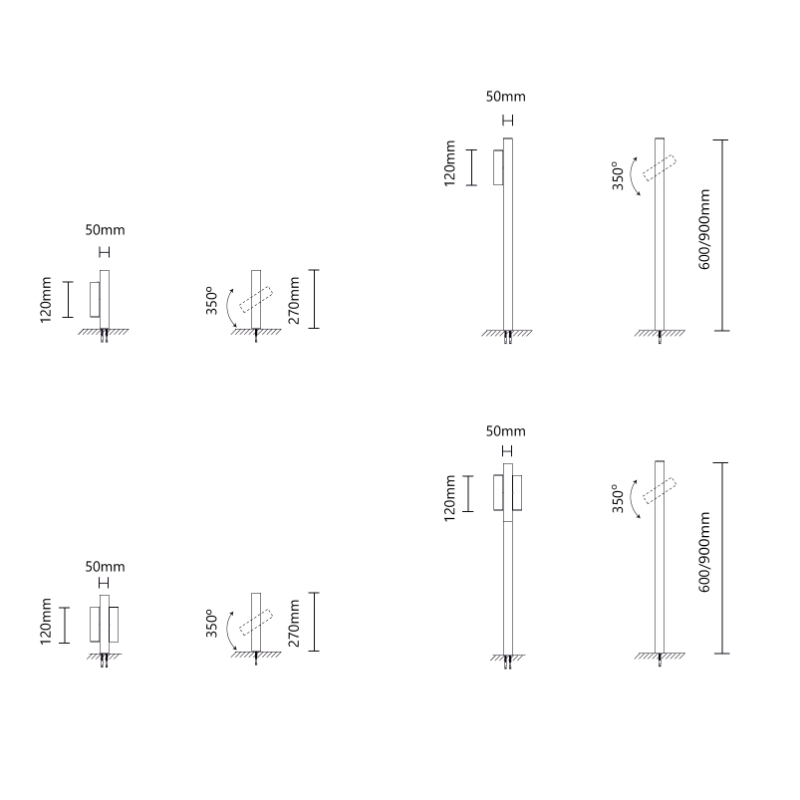

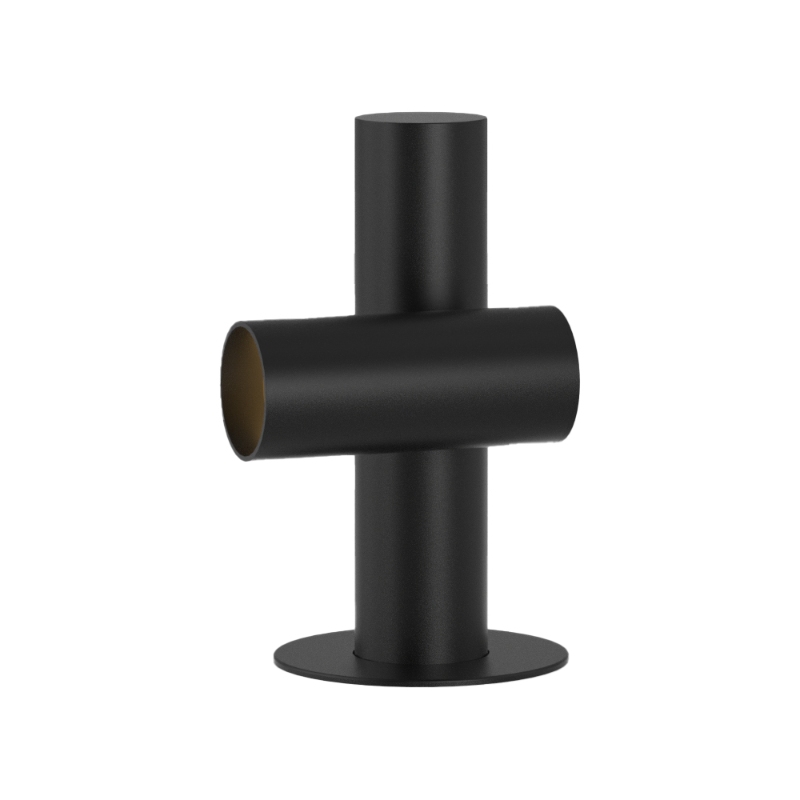

- H600 / H900 mm; compact version H270 mm
- Head
- Dia 50 mm, 350-degree rotatable
- Power
- 7W (LT-X1) / 14W (LT-X2)
- Light source
- 1 x COB (LT-X1) / 2 x COB (LT-X2), CRI > 80
- Lumen output
- 578 lm (LT-X1) / 1156 lm (LT-X2), 85 lm/W
- Beam options
- 15 / 24 / 36 / 50 degrees
- CCT
- 5000K white; 3000K / 4000K available on request
- Material
- 6063-T6 extruded aluminium alloy, CNC machined
- Optics
- Acrylic optics, wide range of IES distributions
- Coating
- Polyester powder coating with phosphochromating pre-finish
- Driver
- Mounted inside the fixture head, accessible from the back for ease of maintenance
- Screws
- Stainless steel
- Gasket
- Silicone rubber
- Glass
- Tempered
- Power cable
- 0.6 m neoprene power cable included
- Input
- Electronic power supply 220/240V 50/60Hz
- Rating
- IP65 / IK06
- SDCM
- MacAdam step 3
- Mounting
- Concrete anchor M8 or ground nail 1/2-inch NPT (purchased separately)
- Finish colours
- Sand Grey / Sand White / Sand Black / Coffee Brown / Dark Grey
- Warranty
- 3 years (per supplier)
- Collection
- NoorArch ready collection
(Product Name)
(Long Description)
(Technical Specifications)
(Application)
Frequently Asked Questions
Q: Which colours and finishes are available?
A: The BAMBOO | Organic Asymmetric Bollard is available in several finishes.
Q: Where is this luminaire typically installed?

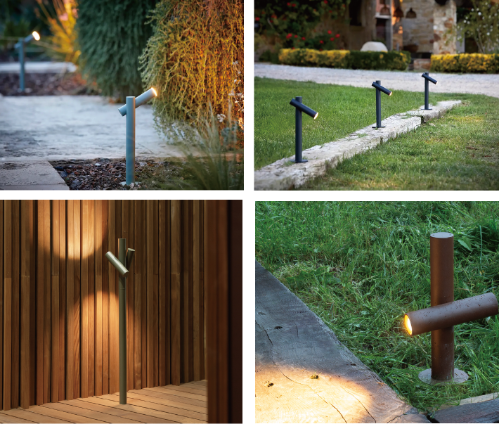

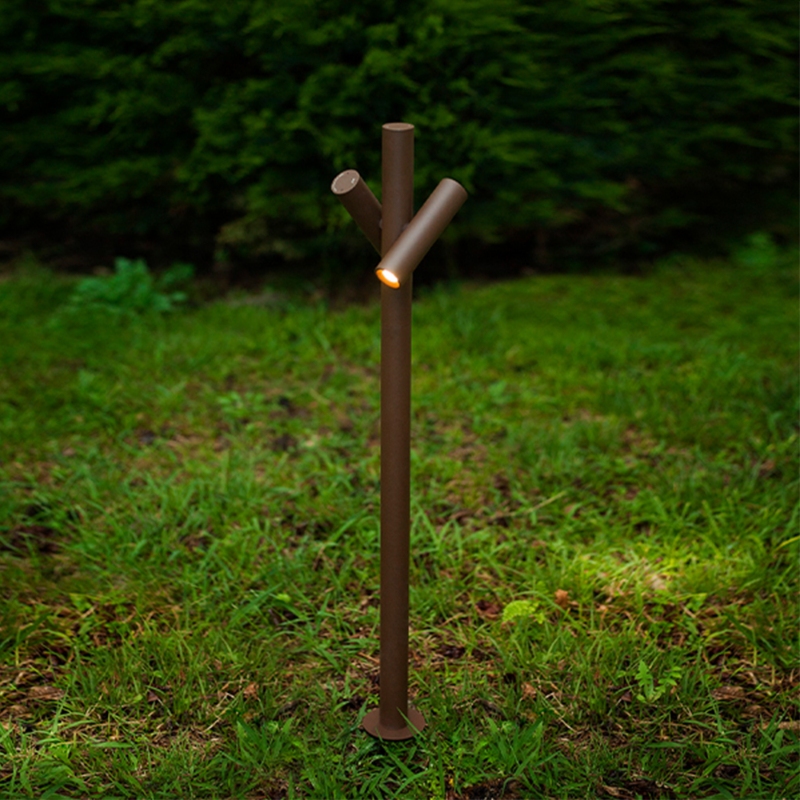

A: Typical applications: lawns, paths, driveways and garden edges.
Q: Can this model be modified or private-labeled?
A: Yes - refresh or private-mold development is available on request, including finishes and configurations. Submit a project brief with your target specification and volume.
Frequently Asked Questions
Q: What is the difference between LT-X1 and LT-X2?

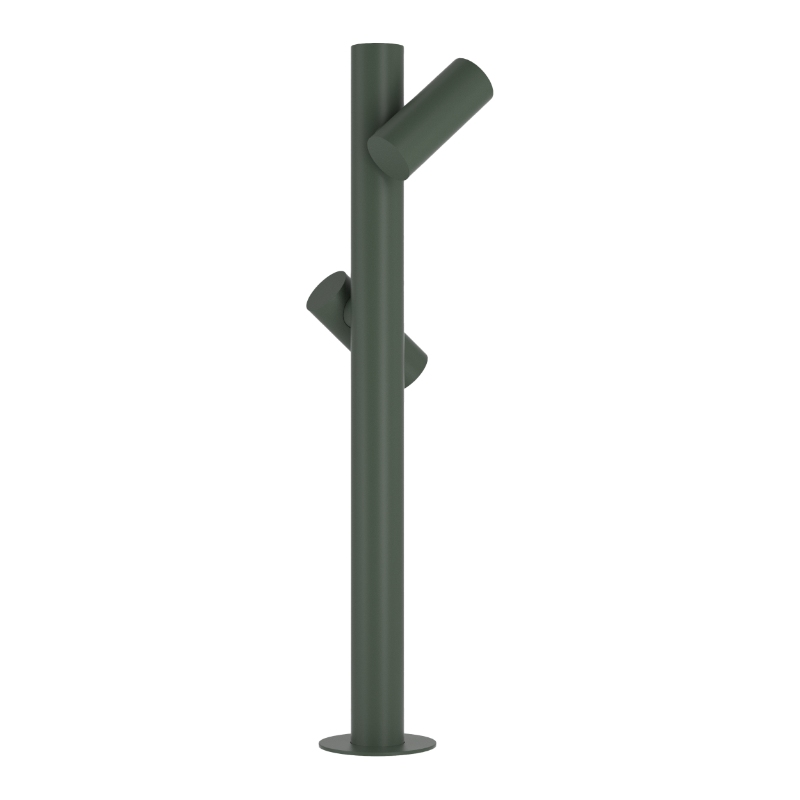

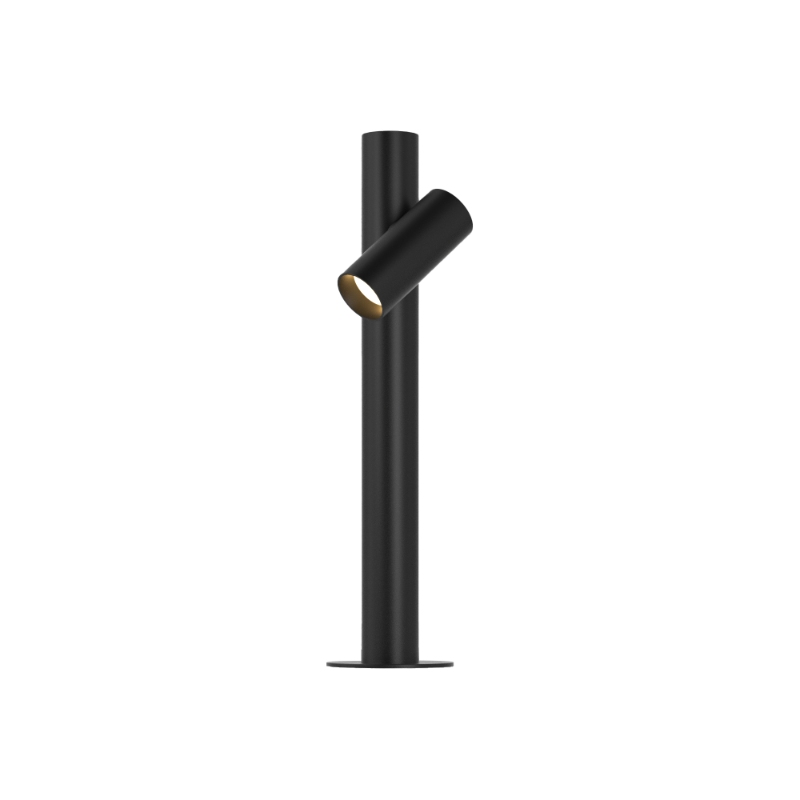

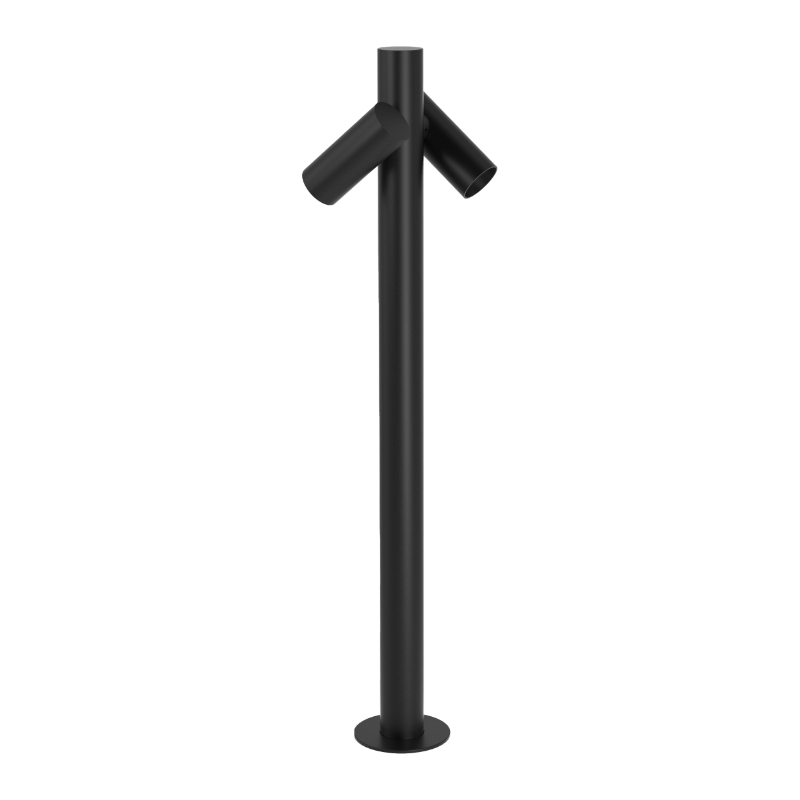

A: LT-X1-7W carries one COB (578 lm) with a single rotatable head; LT-X2-14W carries two COBs (1156 lm) on a double head - same body family, same beam options.
Q: Which heights are available?
A: 270 mm compact, 600 mm and 900 mm.
Q: Can the heads be re-aimed after installation?
A: Yes - heads rotate 350 degrees, with 15 / 24 / 36 / 50 degree beam options selectable per project.
Q: Which finishes are available?
A: Textured Grey RAL9006, Anthracite Grey RAL7024, Bronze RAL8019 and Matt Black on request; custom colours available.
