NA-8011 Curved Inground Uplight 8W
Compact 8W curved inground uplight with a curved stainless steel trim ring on a black die-cast aluminium body. The asymmetric curved opening throws a wide wash up walls, columns and tree trunks from a flush ground position. Tempered glass diffuser, silicone rubber gasket and IP67 sealing for long-term outdoor buried installation. Size 130 x 78 mm.
Specifications
- Model
- NA-8011
- Type
- Curved inground uplight
- Power
- 8W

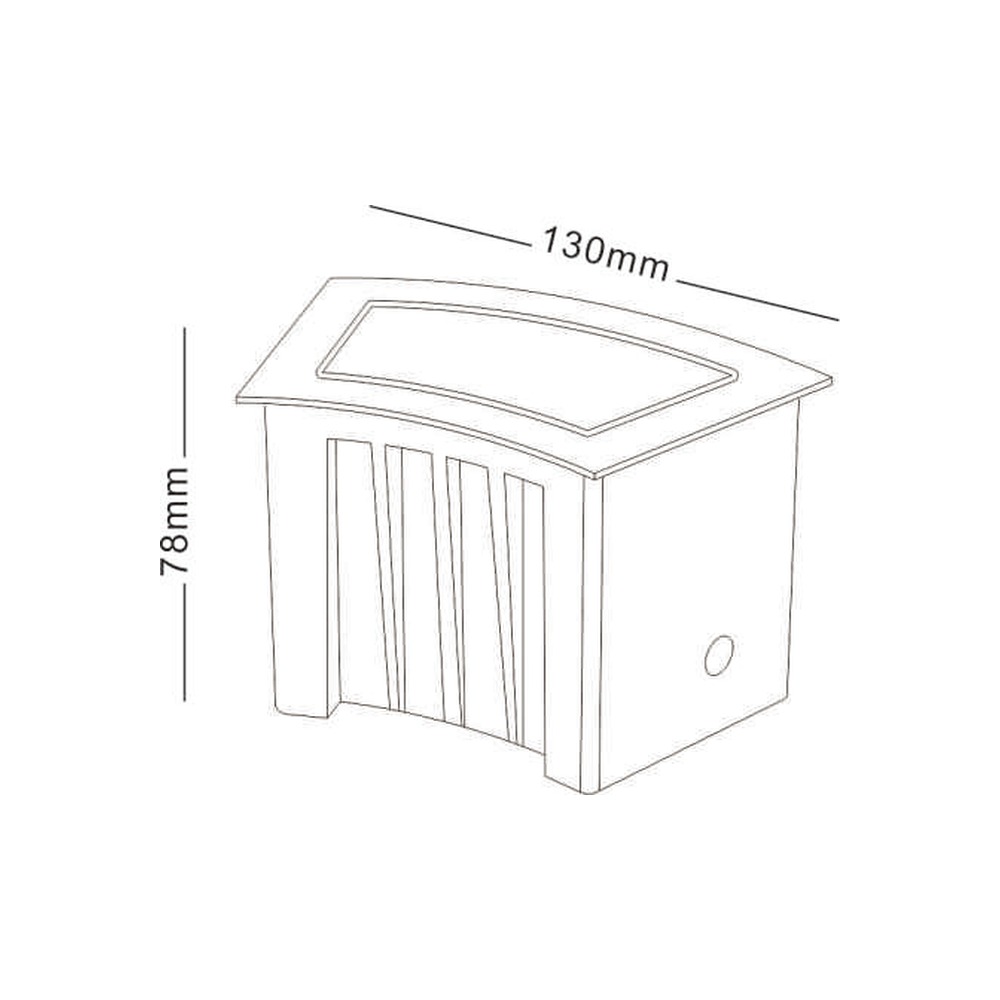

- Size
- 130 x 78 mm
- Body
- Aluminium die casting
- Diffuser
- Tempered glass
- Coating
- Powder coated with pretreatment for outdoor use
- Gasket
- Silicone rubber
- Light source
- LED (CREE / OSRAM / PHILIPS)
- Finish colours
- Sand Grey / Sand White / Sand Black / Coffee Brown / Dark Grey
- IP Rating
- IP67
- Warranty
- 3 years (per supplier)
Product Overview
Compact 8W curved inground uplight: black die-cast aluminium body under a curved stainless steel trim ring, with a tempered glass diffuser. The curved asymmetric opening produces a wide upward wash - designed to graze walls, columns and tree trunks from a flush ground position. Silicone rubber gasket and IP67 sealing make it suitable for permanently buried outdoor installation.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. Refresh existing molds or develop private versions - German-standard documentation, certification support and pilot runs available on request.
Frequently Asked Questions
Q: What is the installation size of the NA-8011?
A: The body measures 130 x 78 mm; plan a recess pocket that keeps the stainless trim flush with the paving.
Q: Is it suitable for drive-over areas?
A: It is rated IP67 for water immersion; for load-bearing applications confirm the expected traffic with us first.
Q: Which LED brands are used?
A: LED sources from CREE, OSRAM or PHILIPS are available on the platform.
