NA-8012 Arc LED Washer 36W
36W curved arc LED washer for in-ground architectural washing. Eighteen LED apertures along a 420 mm die-cast aluminium arc produce an even fan of light across columns, palms and facades. Tempered glass lens shield, powder-coated body with pretreatment and IP67 sealing. Size 420 x 60 x 60 mm.
Specifications
- Model
- NA-8012
- Type
- Arc LED washer, ground recessed
- Power
- 36W
- LED apertures
- 18 along the arc
- Size

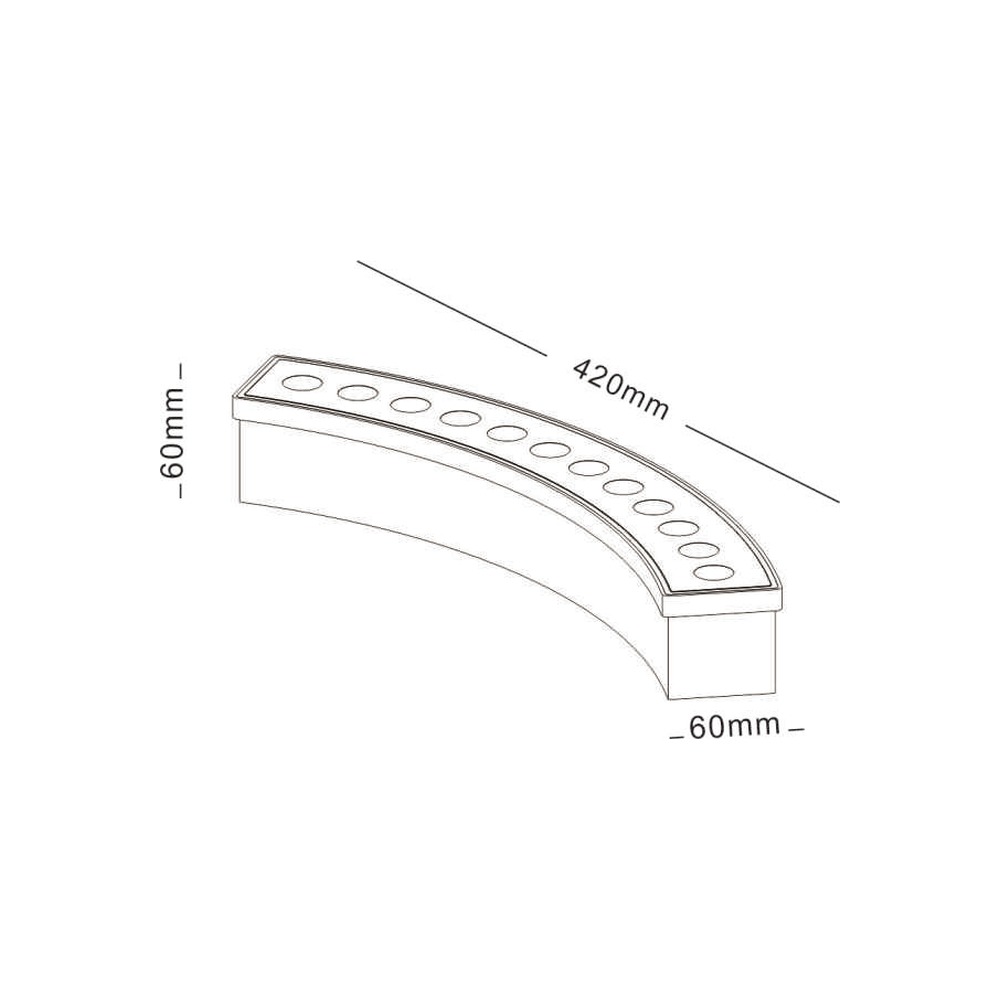

- 420 x 60 x 60 mm
- Body
- Aluminium die casting
- Diffuser
- Tempered glass
- Coating
- Powder coated with pretreatment for outdoor use
- Gasket
- Silicone rubber
- Light source
- LED (CREE / OSRAM / PHILIPS)
- Finish colours
- Sand Grey / Sand White / Sand Black / Coffee Brown / Dark Grey
- IP Rating
- IP67
- Warranty
- 3 years (per supplier)
Product Overview
36W curved arc washer that sits flush in the ground and throws an even fan of light across columns, palms and facades. Eighteen LED apertures line the 420 mm die-cast aluminium arc, covered by a tempered glass shield. Powder coating with pretreatment, silicone rubber gasket and IP67 sealing for permanent outdoor burial.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. Refresh existing molds or develop private versions - German-standard documentation, certification support and pilot runs available on request.
Frequently Asked Questions
Q: What effect does the NA-8012 create?
A: The 420 mm arc fans light upward across trunks, columns and facade piers from a single flush housing.
Q: What is its power consumption?
A: 36W system power with LED sources from CREE, OSRAM or PHILIPS.
Q: Can it be curved around a tree or column?
A: Yes - the 60 mm wide arc body follows a fixed curve; tell us the trunk diameter and we will confirm suitability.
