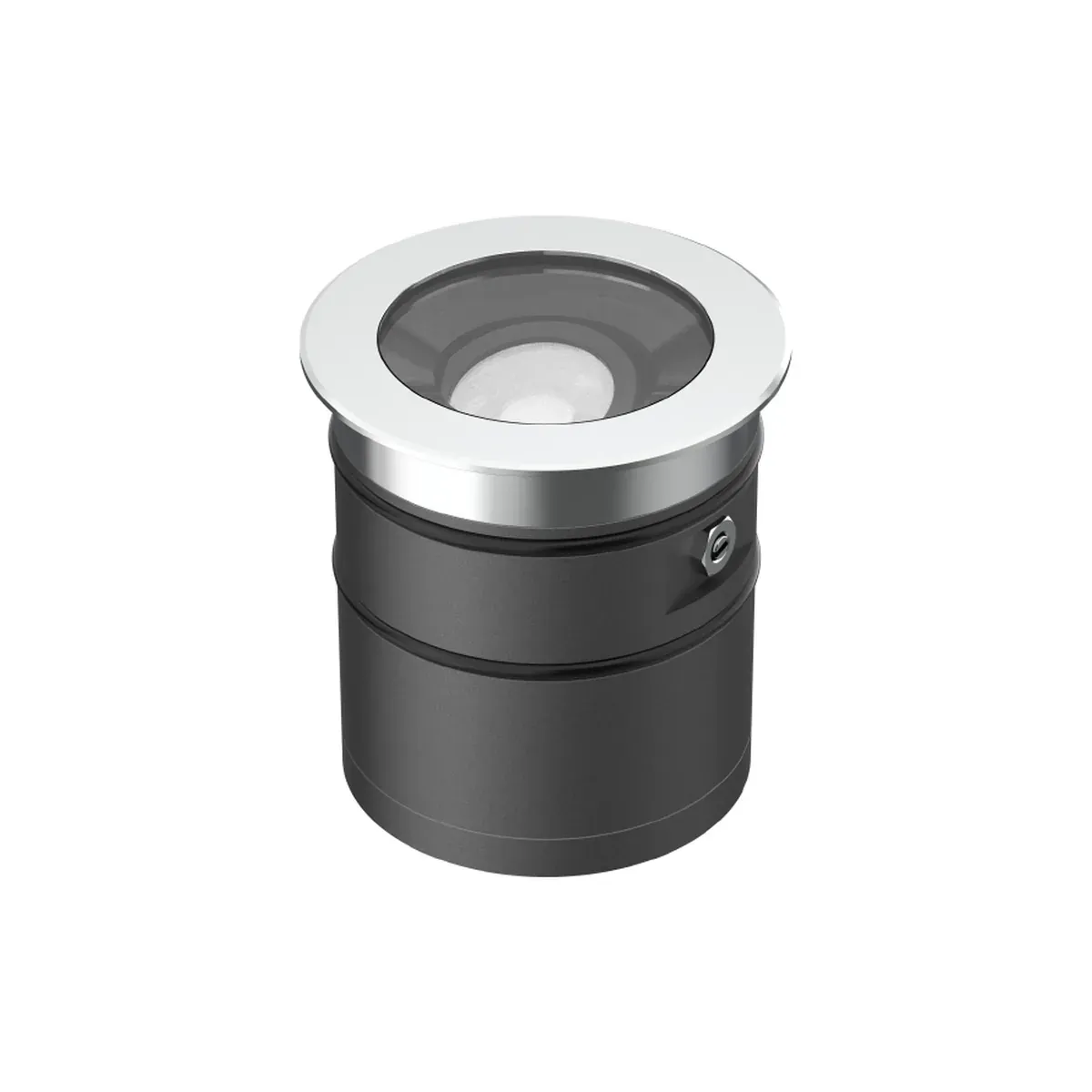

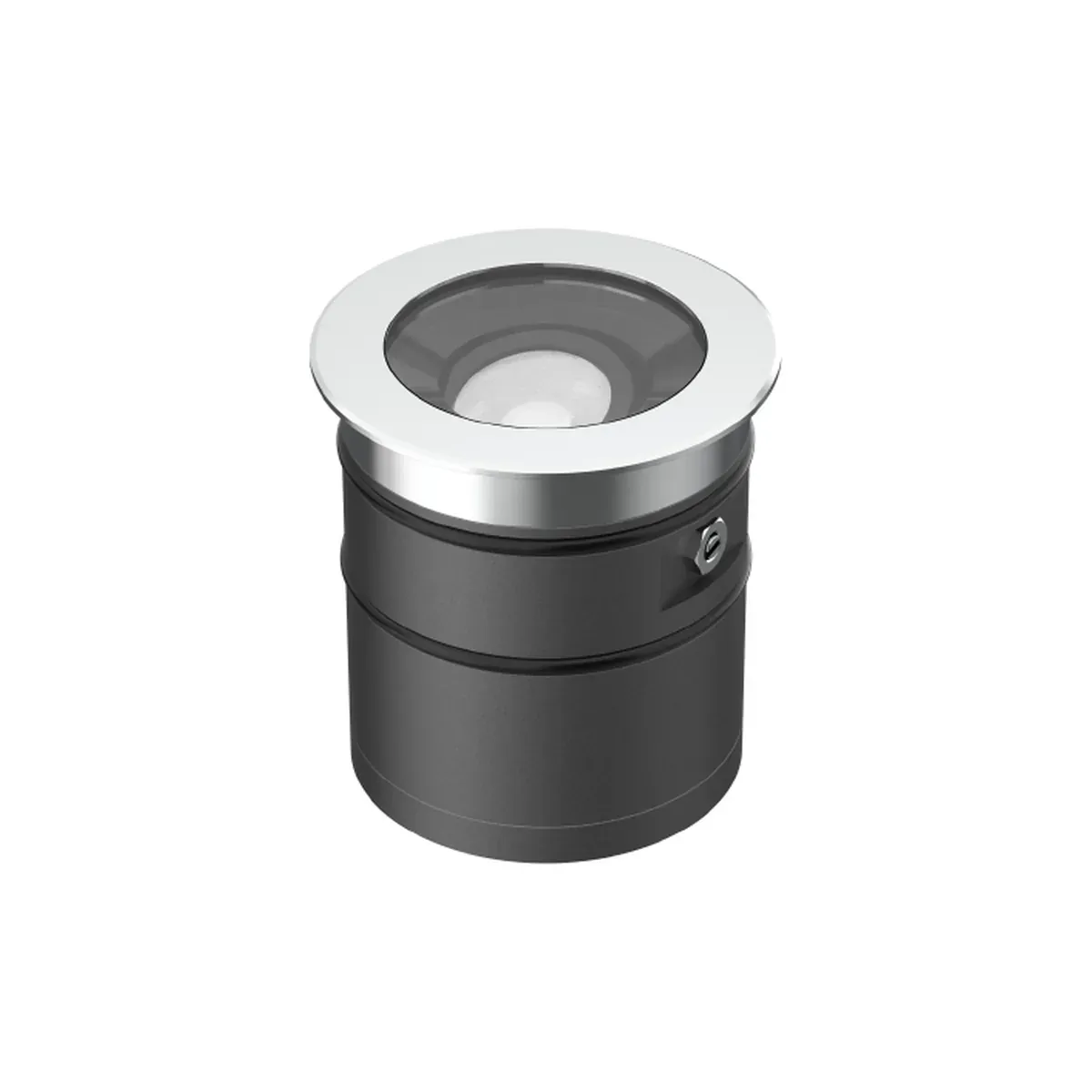

NA-80-C / NA-100-C / NA-120-C Adjustable LED Inground Light
Adjustable LED inground light available in three body sizes for different lighting loads: NA-80-C at 10-12W, NA-100-C at 15-18W and NA-120-C at 18-24W. A brushed stainless-steel trim sits over a dark-grey aluminium housing, and each head tilts 15 degrees after installation so uplighting for facades, trees and columns can be re-aimed without reworking the recess. Sealed to IP66 with CRI Ra > 80 for accurate colour rendering, the clear glass cover keeps a clean flush finish that suits walk-over garden, terrace and pathway installations in 80 mm, 100 mm and 120 mm diameter bodies.
Specifications
- Model
- NA-80-C / NA-100-C / NA-120-C
- Type
- Adjustable LED inground light, 15° tilt
- System power
- 10-12W (NA-80-C) / 15-18W (NA-100-C) / 18-24W (NA-120-C)
- Size
- Ø80 × 108 mm (NA-80-C) / Ø100 × 121 mm (NA-100-C) / Ø120 × 141 mm (NA-120-C)
- Material
- Stainless steel + aluminium
- Construction
- Brushed stainless-steel trim on dark-grey aluminium body
- Adjustability
- 15° tilt, adjustable after installation
- CRI
- Ra > 80
- IP grade
- IP66
- Cover
- Clear glass cover over LED
- Mounting
- Ground recessed
- Warranty
- 3 years (per supplier)
Product Overview
Adjustable LED inground light in three body sizes - 80 mm, 100 mm and 120 mm diameter - for different lighting loads. A brushed stainless-steel trim covers a dark-grey aluminium housing, and the head tilts 15 degrees so the beam can be re-aimed after installation. IP66 sealing and CRI Ra > 80 suit facade, tree and column uplighting in gardens, terraces and pathways, with a clear glass cover keeping the installed finish flush to the paving.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. The same housing platform can be adapted with your own optics, color temperature, trim finish and cable length; private-mold development and certification support are available on request - submit a project brief with your target specification and volume.
Frequently Asked Questions
Q: Which sizes and wattages are available?
A: Three sizes: NA-80-C at Ø80 × 108 mm for 10-12W, NA-100-C at Ø100 × 121 mm for 15-18W, and NA-120-C at Ø120 × 141 mm for 18-24W.

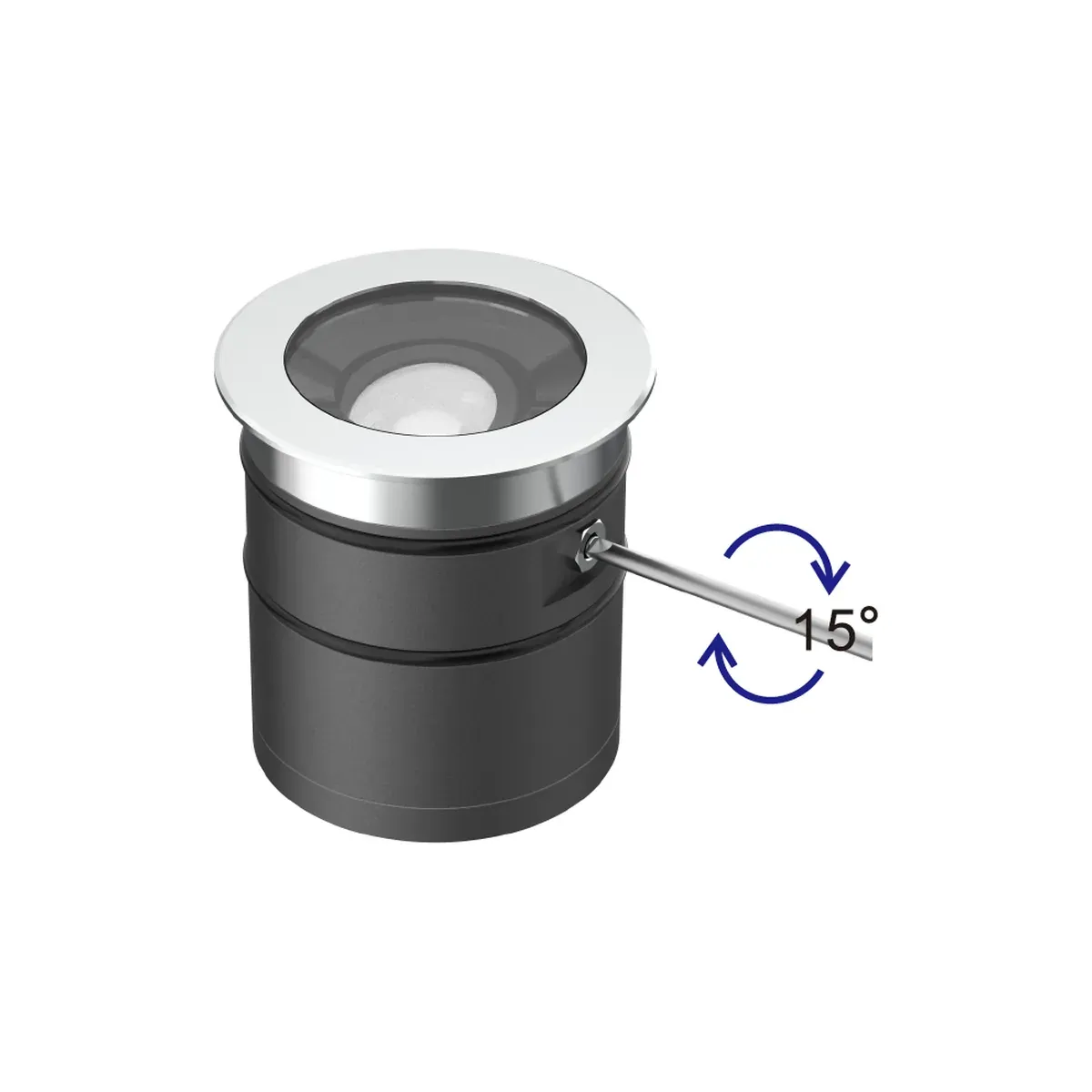

Q: Can the light direction be adjusted after installation?
A: Yes - the head tilts 15 degrees, so facade, tree and column uplighting can be re-aimed without reopening the ground recess.
Q: What protection and colour quality does it offer?
A: IP66 sealing for outdoor ground installation, with CRI Ra > 80 for accurate colour rendering.
Q: Can this series be adapted for our brand?
A: Yes - the platform accepts your own optics, color temperature, trim finish and cable length. Submit a project brief with your target specification and volume.
