Bollard & Path
NA-TUBE-X1
Nature-inspired bollard resembling cut bamboo stems, blending seamlessly into garden vegetation. The 6063-T6 extruded aluminium body is CNC machined with an acrylic optic offering a wide range of IES distributions; the 350-degree rotatable head aims the 7W COB exactly where needed. Available in H600 / H900 mm with a H270 mm compact version.
Specifications
- Sizes
- H600 / H900 mm; compact version H270 mm
- Head
- Dia 50 mm, 350-degree rotatable
- Power
- 7W, 1 x COB, CRI>80
- Lumen output
- 578 lm, 85 lm/W
- Beam options
- 15 / 24 / 36 / 50 degrees
- CCT
- 5000K white; 3000K / 4000K available on request
- Material
- 6063-T6 extruded aluminium alloy, CNC machined; aluminium profile
- Optics
- Acrylic optics, wide range of IES distributions
- Coating
- Polyester powder coating with phosphochromating pre-finish
- Driver
- Mounted inside the fixture head, accessible from the back for ease of maintenance
- Screws
- Stainless steel
- Gasket
- Silicone rubber
- Glass
- Tempered
- Power cable
- 0.6 m neoprene power cable included
- Transformer
- Electronic power supply 220/240V 50/60Hz
- Rating
- IP65 / IK06
- SDCM
- MacAdam step 3
- Mounting
- Concrete anchor M8 or ground nail 1/2-inch NPT (purchased separately)
- Finish colours
- Sand Grey / Sand White / Sand Black / Coffee Brown / Dark Grey
- Warranty
- 3 years (per supplier)
- Collection
- NoorArch ready collection
Product Overview
Nature-inspired bollard resembling cut bamboo stems, blending seamlessly into garden vegetation. The 6063-T6 extruded aluminium body is CNC machined with an acrylic optic offering a wide range of IES distributions; the 350-degree rotatable head aims the 7W COB exactly where needed. Available in H600 / H900 mm with a H270 mm compact version.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. Refresh or private-mold development is available on request - submit a project brief with your target specification and volume.
Frequently Asked Questions
Q: Which colours and finishes are available?
A: The NA-TUBE-X1 is available in Textured Grey RAL9006 / Anthracite Grey RAL7024 / Matt Black (on request) / Bronze RAL8019; custom colours available.
Q: Where is this luminaire typically installed?

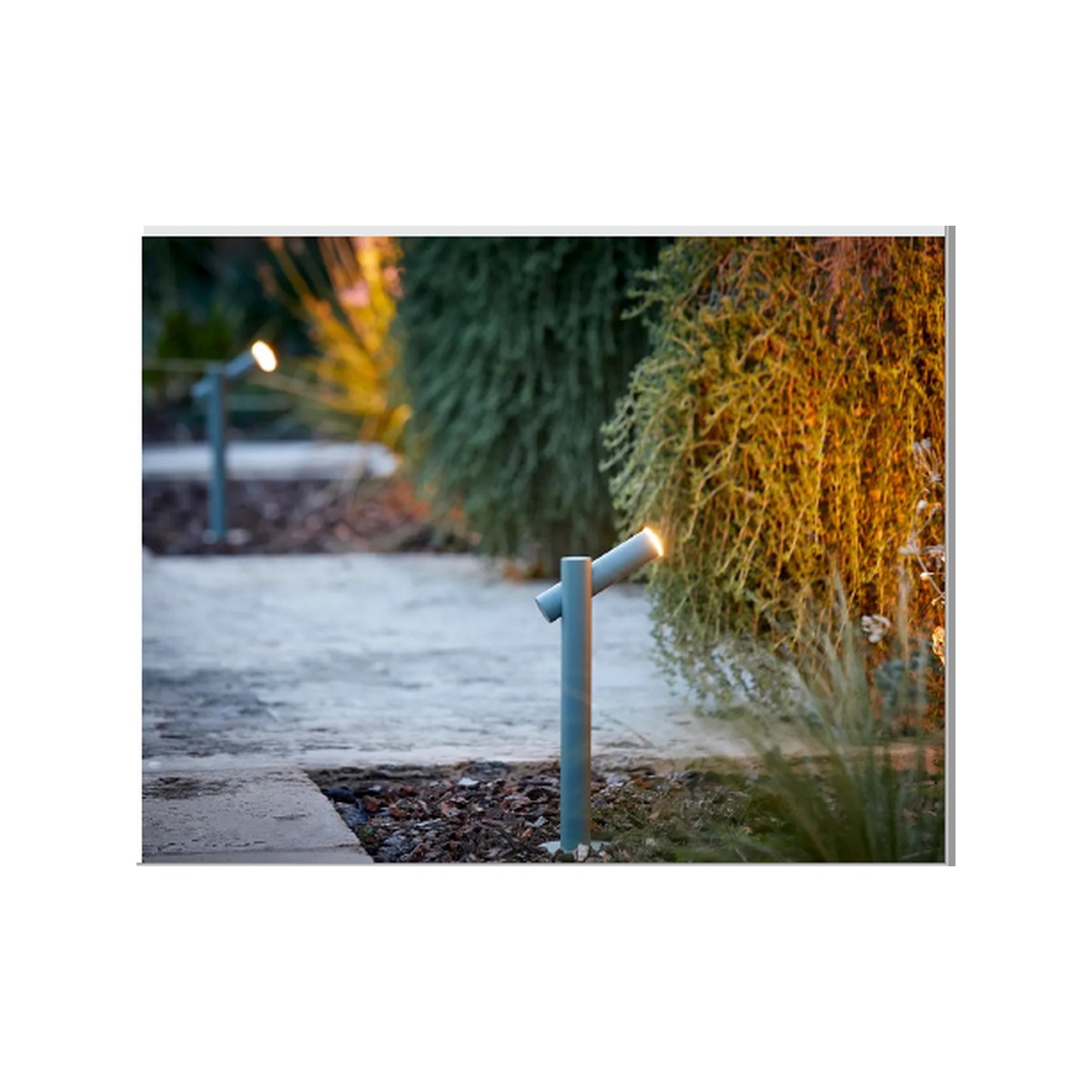

A: Typical applications: lawns, paths, driveways and garden edges - blending into garden vegetation.
Q: Can this model be modified or private-labeled?
A: Yes - refresh or private-mold development is available on request. Submit a project brief with your target specification and volume.
