Inground
NA-UG-30W Adjustable LED Inground Light

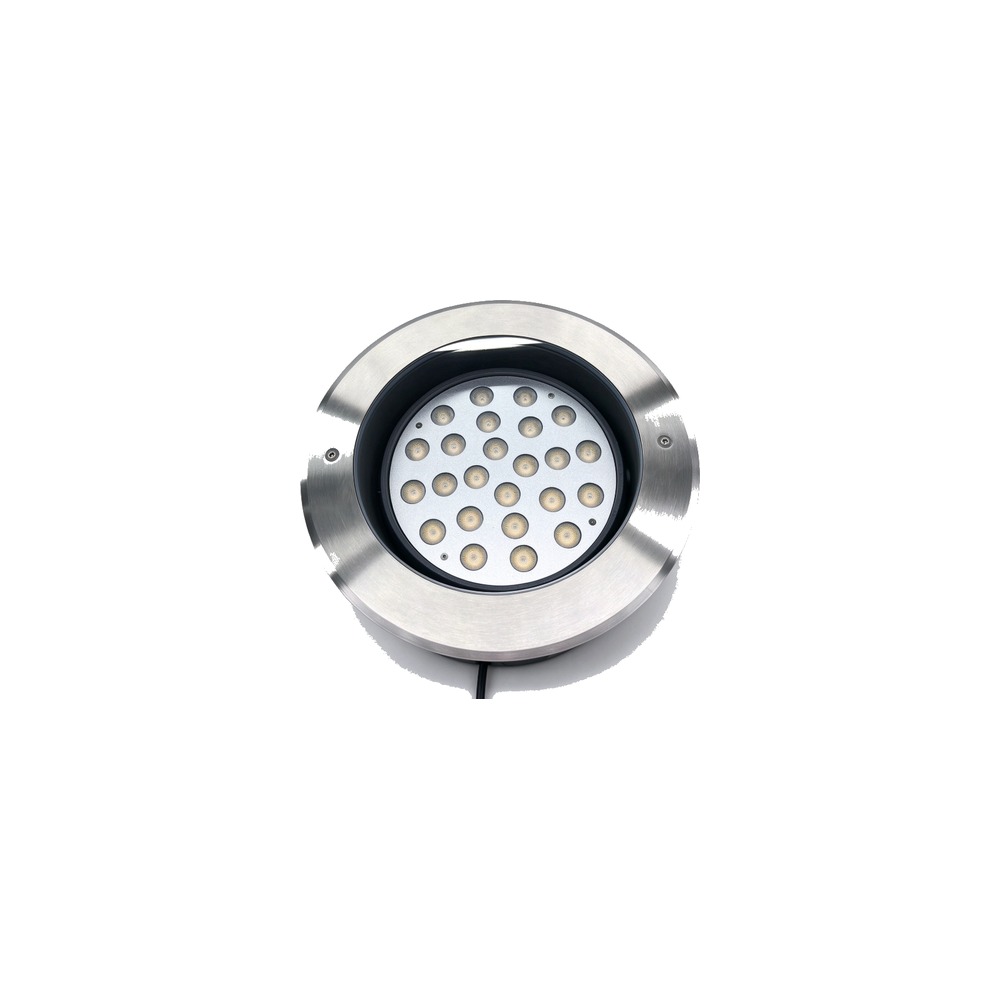

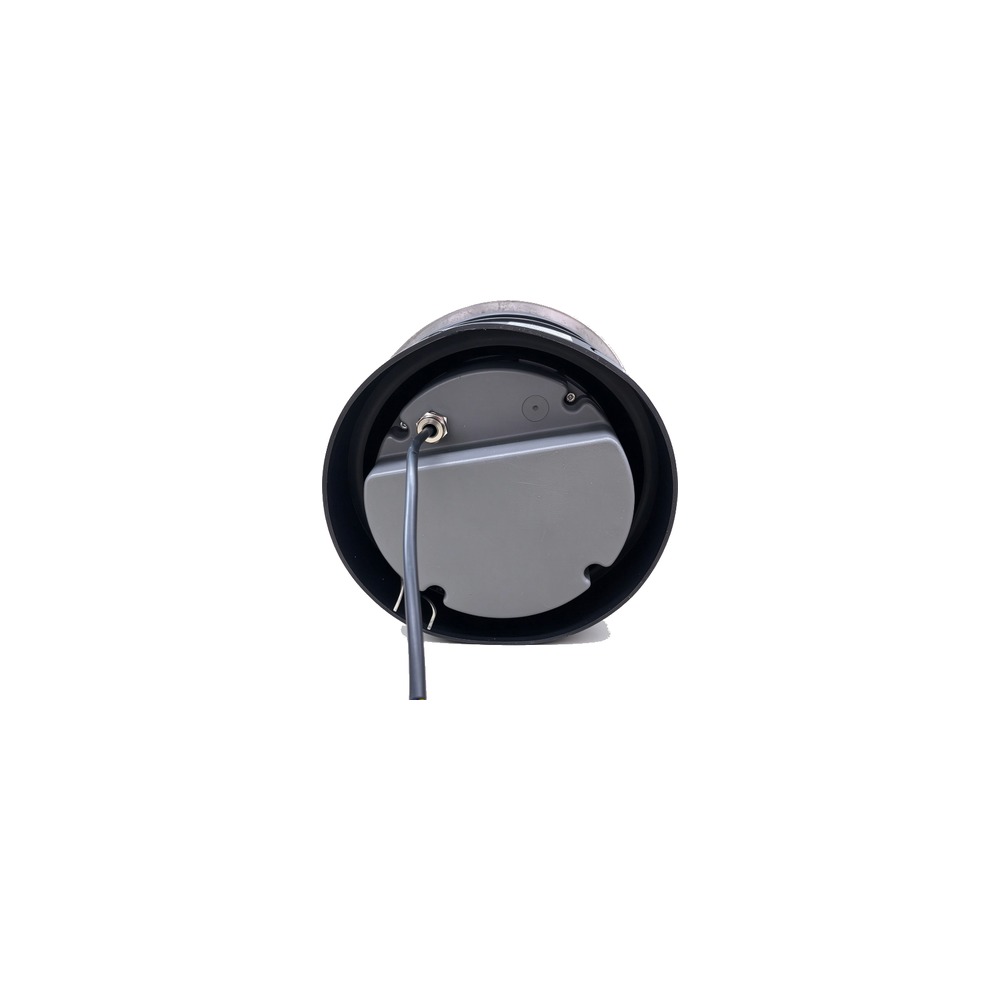

Professional 30W adjustable LED inground light with a hairline-finish stainless steel 316 trim on a dark-grey die-cast aluminium body. The adjustable CREE LED module can be re-aimed after installation, so facades, trees and architectural features stay easy to relight as the landscape matures. Tempered glass, IP65 sealing and AC100-240V wide-voltage input, with 3000K, 4500K and 6500K options at CRI greater than 80 and a 50,000-hour LED life. Trim 240 mm, body height 196 mm, cut-out 260 mm - sized for gardens, pathways, plazas and facade lighting projects.
Specifications
- Model
- NA-UG-30W (UG-30W Series)
- Type
- Adjustable LED inground light
- System power
- 30W
- Light source
- CREE LED, adjustable module
- CCT
- 3000K / 4500K / 6500K
- CRI
- Ra > 80
- LED lifetime
- 50,000 h
- Input
- AC100-240V 50/60Hz
- Driver
- Customized quality standard
- Trim
- Stainless steel 316, hairline finish
- Housing
- Die-cast aluminium, dark grey
- Glass
- Tempered glass
- IP Rating
- IP65
- Working temperature
- -20 to +45 degrees C
- Size
- Trim dia 240 mm x H 196 mm
- Cut-out
- Dia 260 mm
- Warranty
- 3 years
Product Overview
Professional 30W adjustable LED inground light with a hairline-finish stainless steel 316 trim and dark-grey die-cast aluminium housing. The adjustable CREE LED module lets the installer angle the output after installation, so walls, trees and architectural features can be re-aimed without rework. Tempered glass and IP65 sealing keep the housing weather-tight for long-term outdoor use.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. Refresh existing molds or develop private versions with adjusted optics, CCT sets or finishes - German-standard documentation, certification support and pilot runs available on request.
Frequently Asked Questions
Q: Is the light direction adjustable?
A: Yes - the LED module is adjustable, so the beam can be re-aimed after installation to suit planting, walls or architectural features.
Q: What installation size does it need?
A: The housing needs a 260 mm cut-out; the visible trim is 240 mm in diameter and the body stands 196 mm tall.
Q: Which color temperatures are available?
A: 3000K, 4500K and 6500K, all with CRI greater than 80 on a 50,000-hour CREE LED source.
Q: What input voltage does it use?
A: AC100-240V 50/60Hz wide-voltage input with a customized quality driver, rated for -20 to +45 degrees C ambient.
