Inground
NAG-RUL-CED1-06

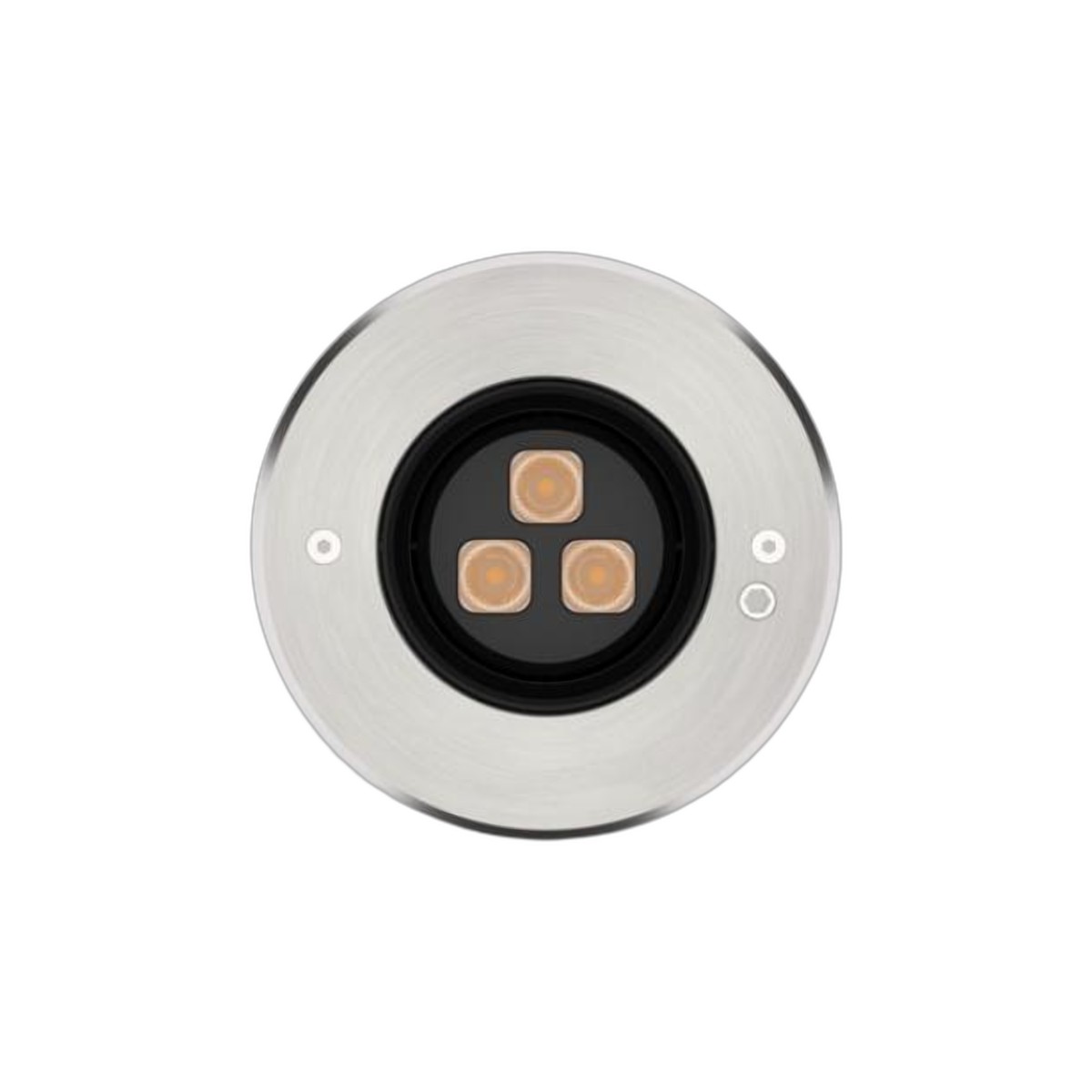

Adjustable recessed LED up light with a tilt range of plus or minus 25 degrees for precision tree and facade illumination. Luminus LED (3 x 2W), switchable CCT 3000K/4000K/5000K at CRI90, six beam angle options from 8 to 45 degrees plus flood, 24V DC, IP67. Aluminium body with tempered glass; installation sleeve included.
Specifications
- Light source
- 3 x 2W LED, Luminus
- Lumen
- 182 lm
- CCT / CRI
- 3000K / 4000K / 5000K, CRI90
- Beam angle
- 8 / 15 / 25 / 35 / 45 degrees, flood
- Tilt
- ±25 degrees
- Input
- 24V DC
- Size
- Dia 130 x 142 mm (cutout Dia 115 mm)
- Material
- Aluminium + tempered glass
- Rating
- IP67
- Warranty
- 3 years (per supplier)
Product Overview
Adjustable recessed LED up light with a tilt range of plus or minus 25 degrees for precision tree and facade illumination. Luminus LED (3 x 2W), switchable CCT 3000K/4000K/5000K at CRI90, six beam angle options from 8 to 45 degrees plus flood, 24V DC, IP67. Aluminium body with tempered glass; installation sleeve included.
OEM / ODM Notes
Finished-goods selection from the NoorArch ready collection. Refresh or private-mold development of this model is available on request - submit a project brief with your target specification and volume.
Frequently Asked Questions
Q: Which colours and finishes are available?
A: The NAG-RUL-CED1-06 is available in several finishes.
Q: Where is this luminaire typically installed?
A: Typical applications: paving, decks and in-grade architectural accents.
Q: Can this model be modified or private-labeled?
A: Yes - refresh or private-mold development is available on request, including finishes and configurations. Submit a project brief with your target specification and volume.
