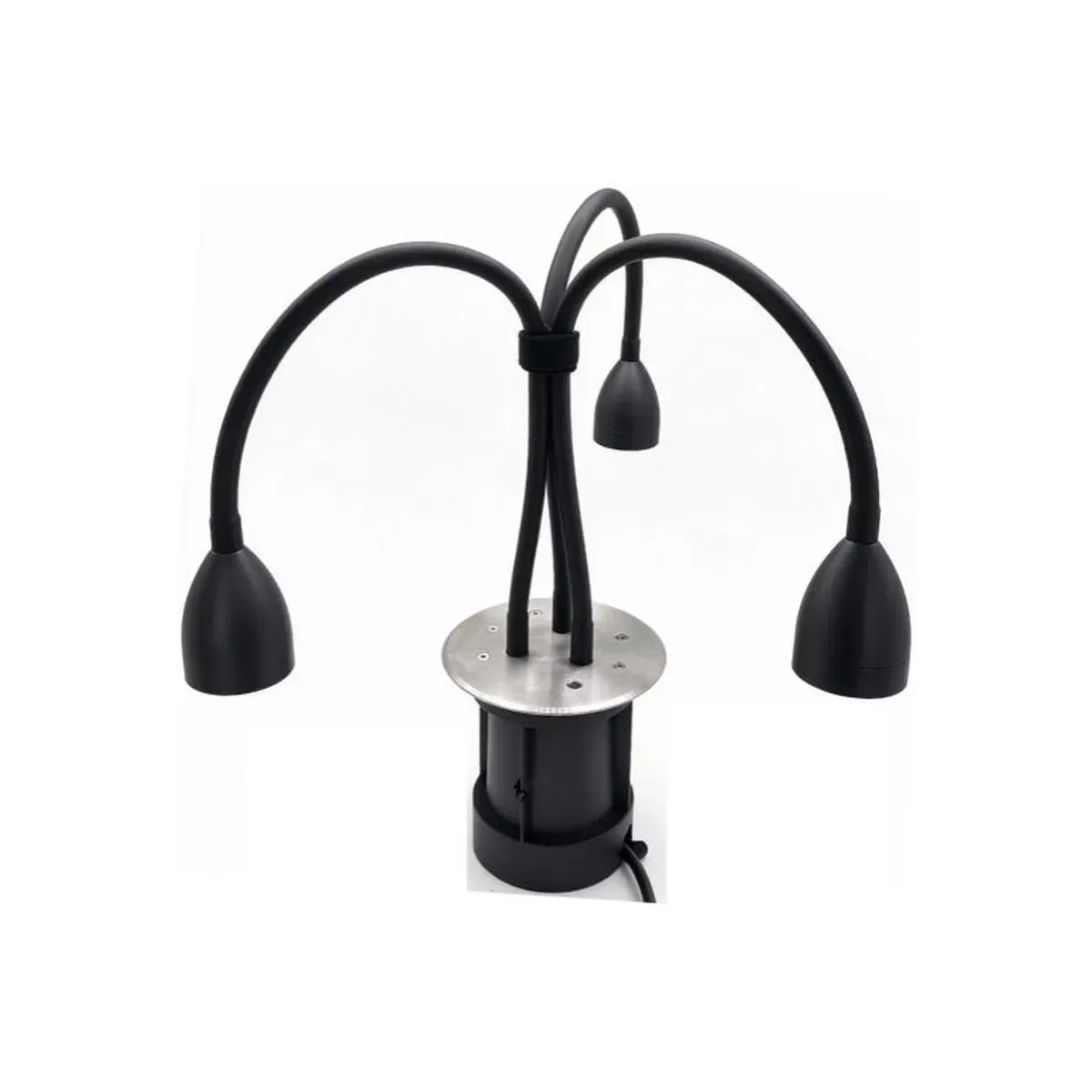

NAG-3ARM stainless steel inground light with 3 folding arms three quarter view - NoorArch outdoor lighting

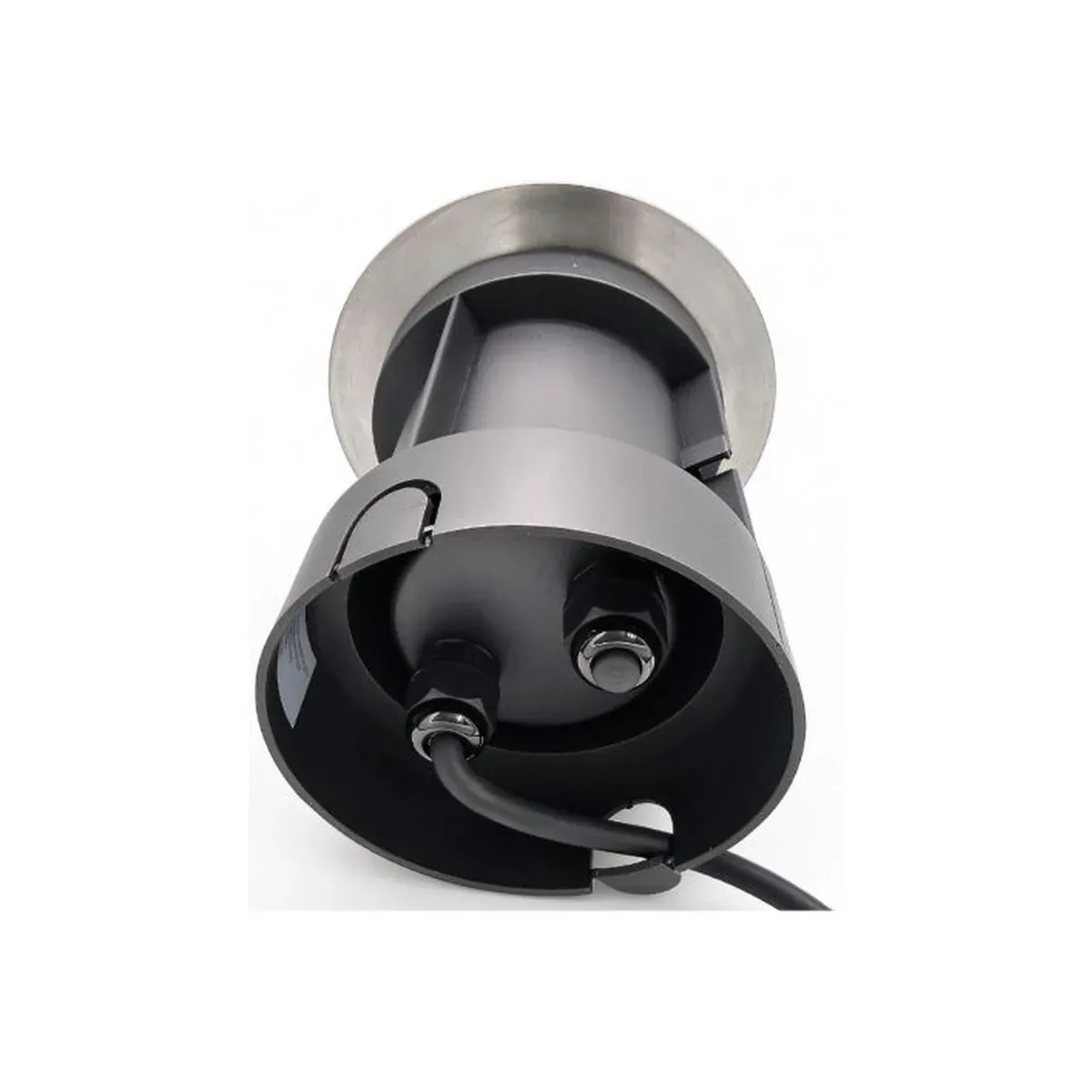

NAG-3ARM inground light base underside with stainless steel cable glands and power cable - NoorArch outdoor lighting
NAG-3ARM inground light wiring compartment with stainless steel PG16 cable gland - NoorArch outdoor lighting
Inground

NAG-3ARM Custom Inground Light with 3 Folding Arms

Custom ground-recessed LED inground light with three folding stainless-steel arms, engineered to a client's specification. The circular body and frame are AISI 304 stainless steel with a corrosion-resistant surface treatment, closed by 8 mm tempered soda-lime glass on a black EPDM seal - IP67-rated and built so that frame, glass and optical assembly together carry a 1000 kg static load in walk-over and drive-over areas. Three flexible stainless-steel arms in heat-shrink sheaths fold out of the housing, each ending in a plastic lens with a 30-degree light cone, while the main optics use a flood distribution. The CREE 9.5W source delivers neutral-white 4000K light at CRI 90, supplied complete with lamp, AC85-265V 50/60Hz electronic ballast, 1 m power cable, stainless-steel PG16 cable gland and anti-transpiration device; external screws in A2 stainless steel.

Specifications

Model
NAG-3ARM (custom program)
Type
Ground-recessed LED luminaire with 3 folding arms
System power
9.5W
Light source
CREE LED, lamp included
CCT
4000K
CRI
Ra 90
Beam angle
30 degrees
Optic
Flood optic
Arm optics
3 flexible stainless-steel arms, heat-shrink sheath, plastic lenses with 30-degree light cone
Material
Stainless steel + aluminium
Body & frame
AISI 304 stainless steel, corrosion-resistant surface treatment
Finish
Black
Glass
8 mm tempered soda-lime glass
Seal
Black EPDM gasket
Load rating
1000 kg static load (frame, glass and optical assembly)
IP grade
IP67
Size

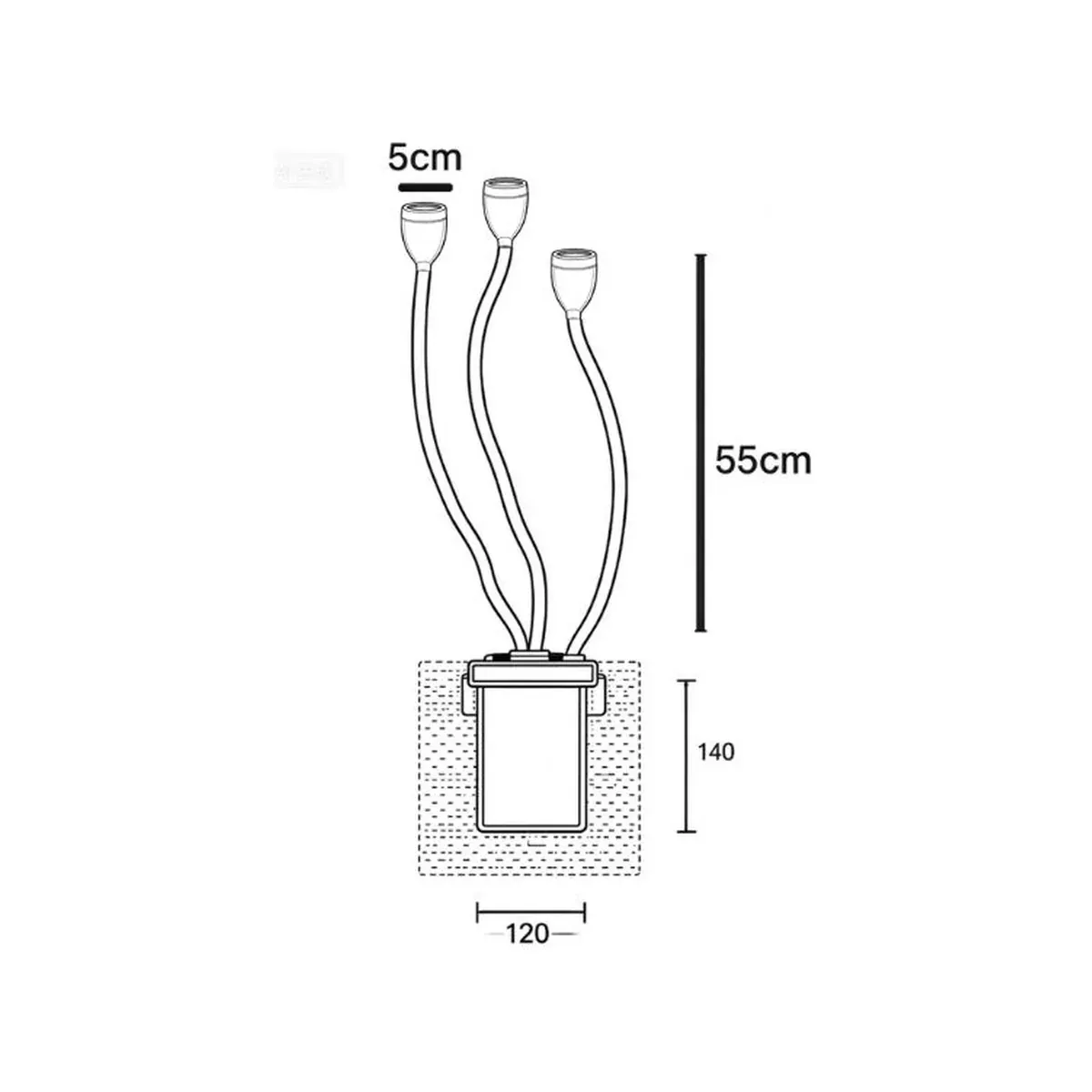

Arm head dia 50 mm, arm height 550 mm above ground, recessed housing 120 x 140 mm
Cable gland
Stainless-steel PG16
Cable
1 m power cable with anti-transpiration device
Screws
A2 stainless steel (external)
Input
AC85-265V 50/60Hz, electronic ballast included
Mounting
Ground recessed
Accessories
Anti-theft screw kit with wrench (available)
Warranty
3 years (per supplier)

Product Overview

Ground-recessed inground light with three folding stainless-steel arms, built as a custom program to a client's specification. The circular AISI 304 stainless steel body and frame sit flush with the paving under 8 mm tempered glass; IP67 sealing and a 1000 kg static load rating suit walk-over and drive-over zones. The flexible stainless-steel arms can be bent to aim each 30-degree plastic lens where the landscape needs light, and the CREE 9.5W source delivers neutral-white 4000K light at CRI 90.

Custom Program & OEM Notes

This model is built to order as a custom program - it was developed to a client's specification. Arm count, optics, color temperature, finishes and accessories can be adapted to your project; submit a project brief with your target specification and volume.

Frequently Asked Questions

Q: Can it be installed in drive-over areas?
A: Yes - the housing is sealed to IP67, and the frame, 8 mm tempered glass and optical assembly are rated together for a 1000 kg static load in walk-over and drive-over ground-recessed installation.

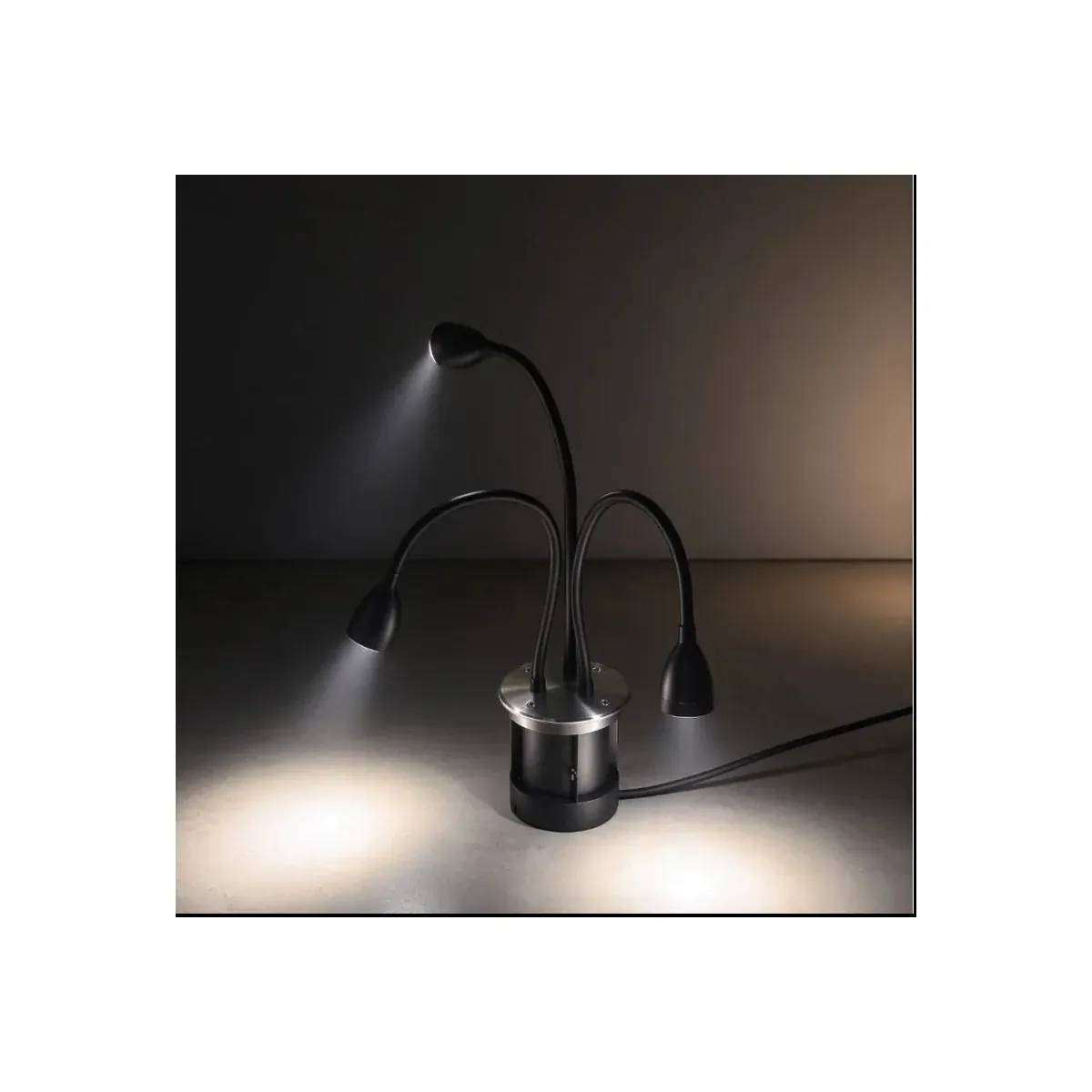

Q: How do the three folding arms work?
A: Three flexible stainless-steel arms with heat-shrink sheaths carry plastic lenses that each project a 30-degree light cone; the arms can be bent to aim the light, while the main body uses a flood optic.
Q: What light output and wiring does it use?
A: A CREE 9.5W LED source in neutral-white 4000K at CRI 90, supplied complete with lamp and AC85-265V 50/60Hz electronic ballast, 1 m power cable, stainless-steel PG16 cable gland and anti-transpiration device.
Q: Can this model be adapted for our brand?
A: Yes - this is a custom program built to order. Arm count, optics, color temperature and finishes can be adjusted; submit a project brief with your target specification and volume.
